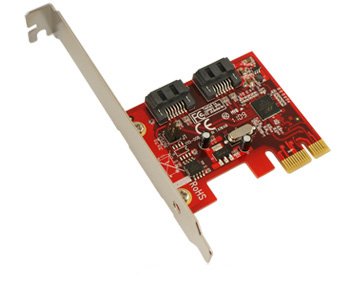

Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets)
CHEAP,Discount,Buy,Sale,Bestsellers,Good,For,REVIEW, Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets)KoutechPESA234,Wholesale,Promotions,Shopping,Shipping,Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets)KoutechPESA234,BestSelling,Off,Savings,Gifts,Cool,Hot,Top,Sellers,Overview,Specifications,Feature,on sale,Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets)KoutechPESA234 Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets)KoutechPESA234
Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets) Overview
Hybrid Drive technology now provides a low cost solution for SSD-type performance on SATA 6G PCI Express host controllers. With the new silicon chip from Marvell, you can reach up to 80% of SSD performance (*3) at 1/3 of the SSD cost. All you need to do is invest in one (1) SSD drive and any HDD drive.
- Compliant with one-lane PCI Express (PCIe x1 slot) and 5Gb/s PCI Express 2.0 specifications (*2)
- Two (2) channels - Two (2) 6.0Gbps SATA III ports
- Two (2) internal SATA III connectors
- Supports both HybridDrive Capacity & Safe modes and supports regular RAID 0 & 1 modes
Capacity Mode - Add SSD & HDD capacities together for a single large volume for maximum cost-effective configuration (*3)
Safe Mode - Mirror SSD Data to HDD; provides optimal data protection by mirroring data from SSD to HDD(*3)
- Comes with both regular & low-profile brackets for maximum compatibility
- Compliant with Serial ATA 2.6 specifications
- Supports all SATA, SATA II, SATA III devices at 1.5/3.0/6.0 Gbps and hard disk drive sizes at 3 TB or higher
- 48-bit LBA mode can break capacity limit to support hard disk drive larger than 137GB in one partition
- Supports bus master DMA at 6.0Gbps burst rate
- Supports FIS-based switching with Port Multipliers
- Two (2) header-pin sets on board for LED connections
- Supports high performance Serial ATA devices
- Fully Plug-N-Play and Hot-Swap compatible
System Requirements:
- PC with 1GB of RAM and 1.2GHz or faster
- One (1) available PCI Express slot
- 32-bit & 64-bit Windows® 2000/XP/Server 2003/Vista/Server 2008/Windows 7 (*1)
*1 Supports both 32-bit & 64-bit OSes
*2 Due to 5Gb/s PCI Express specifications, performance on our SATA 6Gb/s products will max out at 5Gb/s
*3 HybridDrive Overview (*sources from Marvell)
Package Contents:
- One (1) PCI Express card
- One (1) low-profile bracket
- Software CD drivers
- User manual
Koutech Dual Channel SATA 6Gb/s PCI Express (x1) with HybridDrive Support (2xInt) (with both Regular & Low-Profile brackets) Feature
- Compliant with one-lane PCI Express specifications (PCIe x1 slot) and 5Gb/s PCI Express 2.0 specifications (*2)
- Two (2) channels - Two (2) 6.0Gbps SATA III ports and two (2) internal SATA III connectors
- Supports both HybridDrive Capacity & Safe modes; also, supports regular RAID 0 & 1 modes
- Compliant with Serial ATA 2.6 specifications and supports all SATA, SATA II, SATA III devices at 1.5/3.0/6.0 Gbps
- Supports hard disk drive size at 3 TB or higher, Fully Plug-N-Play and supports 32-bit & 64-bit Windows® XP/Server 2003/Vista/Server 2008/Windows 7Hot-Swap compatible, and
